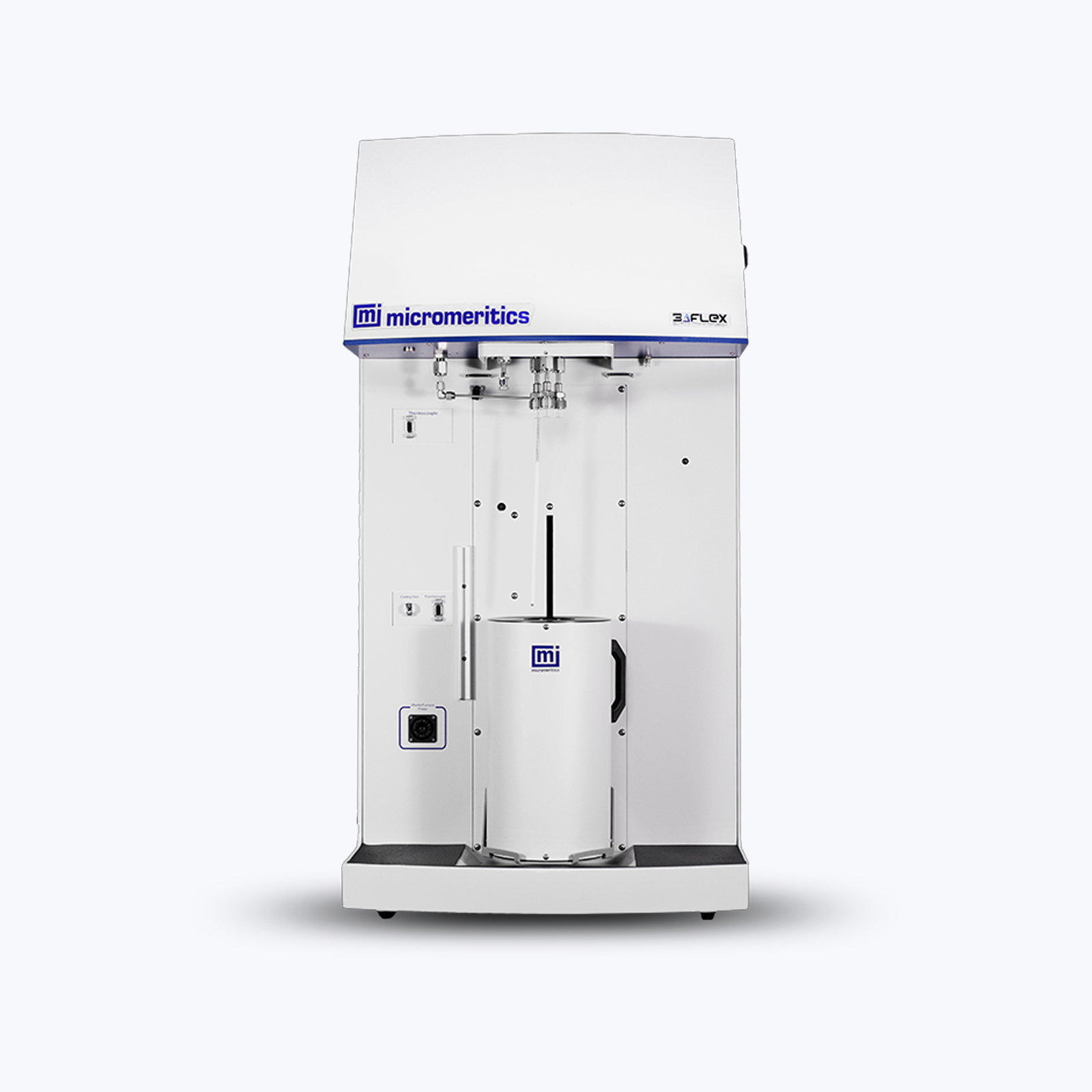

3Flex - High Performance Gas Adsorption
Surface Area, Porosity, Chemisorption, and Temperature Programmed Methods
The 3Flex high-performance gas adsorption analyzer is the most advanced instrument for measuring surface area, pore size, and pore volume of powders and particulate materials. The 3Flex is ideally suited for gas or vapor adsorption analysis of microporous (< 2 nm) and mesoporous (2 to 50 nm) materials and delivers superior accuracy, resolution and data reduction. Standard methods or user-customized protocols can be used to characterize adsorbents, catalysts, zeolites, MOFs, APIs, excipients, and a wide variety of porous and non-porous materials.
Surface Area, Porosity, Chemisorption, and Temperature Programmed Methods
- Highest-performance gas adsorption analyzer for surface area and porosity measurements of microporous solids
- Integrated vapor sorption capabilities to measure surface hydrophobicity/-philicity or application-specific uptake
- Static and dynamic chemisorption capabilities to characterize active surfaces
- Analysis sequencing to measure physisorption, chemisorption, and vapor sorption on a single sample
Overview
Available chemisorption configurations extend the 3Flex to physical and chemical adsorption methods to characterize the texture and active surface of catalysts, catalyst supports, sensors and a variety of other materials.
- Surface area
- Mesopore
- Micropore
- Cyclic adsorption and desorption
- Heat of adsorption
- Vapor sorption
- Static Chemisorption
- Temperature-programmed reactions: TPR, TPO, TPD, TPSR
- Dynamic Chemisorption
The 3Flex features three parallel analysis ports. One port is configured with an ultra-high sensitivity 0.1 torr transducer to enable characterization to the ultra-micropore region. All three ports can be configured for micropore analysis to improve throughput for the most demanding labs. The Flex is a single-port configuration of the 3Flex for labs with limited throughput needs.
Read more in the manufacturer's page.
ΠΕΡΙΛΑΜΒΆΝΕΙ
- Προηγμένη Ανάλυση Δεδομένων και Αναφορά Αποτελεσμάτων
